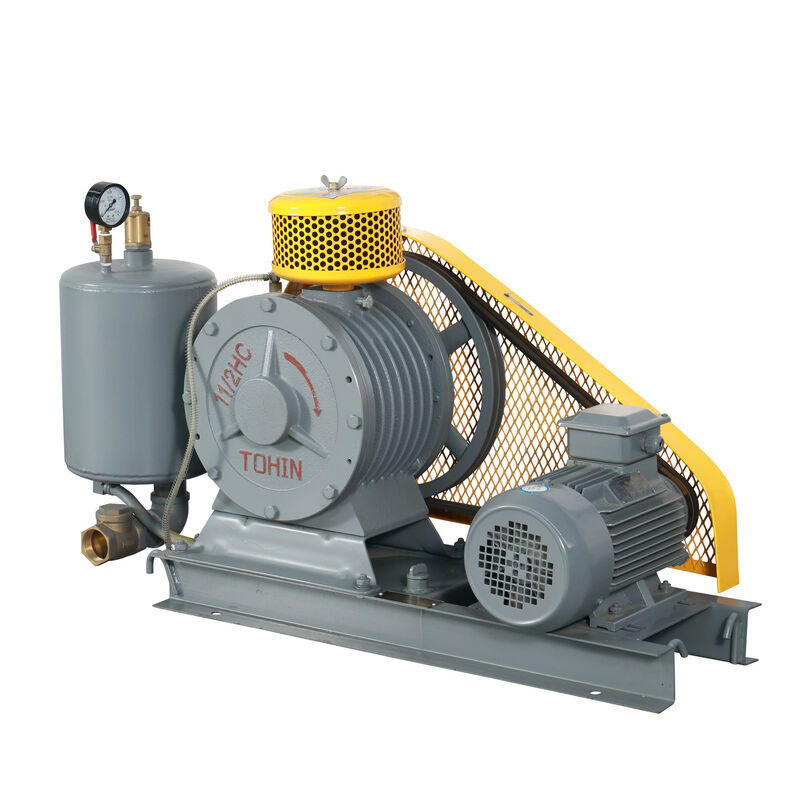

HC-25S 0.37kw ,50HZ,Low Noise Air Rotary Blower, 0.23-0.28 m³/min, 0.1-0.5kg f/cm²

HC-25S 0.37kw ,50HZ,Air Rotary Blower, 0.23-0.28 m³/min, 0.1-0.5kg f/cm²

About HC-25S

Technology of HC blower is of JAPAN TOHIN SHOJI CO., LTD. This kind of blower is widely used for aeration in sewage treatment. Due to its reliability and excellent performance, HC blower has enjoyed good reputation from many customers over the whole world.

Specifications

Applications

• Agitation and aeration for plating tanks and waste water
• Air supplier for plastic welding and blowing
• For mist spray of burner and in glass industry and others
• Wastewater aeration
• Mixing and aerating of hospital and laboratory waste products
• Conveying papers in offset printing operations

Features

• Compact, energy consumption. (It adopts the principle of air compressed by revolving movement. Therefore, although compact, the rotary  blowers display their powerful discharged capacity, low noise, little energy consumption that can't be surpassed by other competitors.)

  ---



• Stable operation, simple installation. (In the case of small types, the blower can be conveniently installed and mere vibration produced if placed correctly, not requiring any other anti-vibration device.)

  ---



• Resisting load changes, securing fixed air flow rate (For instance, if a rotary blower is used for sanitary treatment in the aeration tank, almost no air flow rate is decreased even if load becomes large due to the change in the pressure inside tank.)

  ---



• Air chamber equipped for dispersing air smoothly. (All models are provided with an air chamber, resulting in being free from air pulsation and air dispersed smoothly.

  ---



• performance (All parts of the blowers are made of good material and are fine designed and manufactured. It is durable in use and free of trouble and deterioration of performance after a long time use.)

  ---



• Noise is very low suitable for sewage treatment of residence residential area.

Working Principle

The blower is so designed and constructed that air is sucked, compressed and discharged  repeatedly while vanes protruding from the grooves of rotor are coming in and out by revolution of a rotor (rotating body)   set eccentrically inside the cylinder diameter. A minimum required quantity of oil is dropped to an oil dropping nozzle, then dropped into the cylinder always while operating in order to make lubrication for the purpose of preventing heat and noise from generating. In the same time, there's no circumfluence.

Standard supply of scope

HC Rotary blower's structure is exquisite. It mainly includes motor, air filter, blower body, air chamber, base (and oil tank) and oil dropping nozzle.

FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.

Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.

Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

Q4: What is your warranty?
Our warranty is 12 months after received the machine.

Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.

Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.

Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
